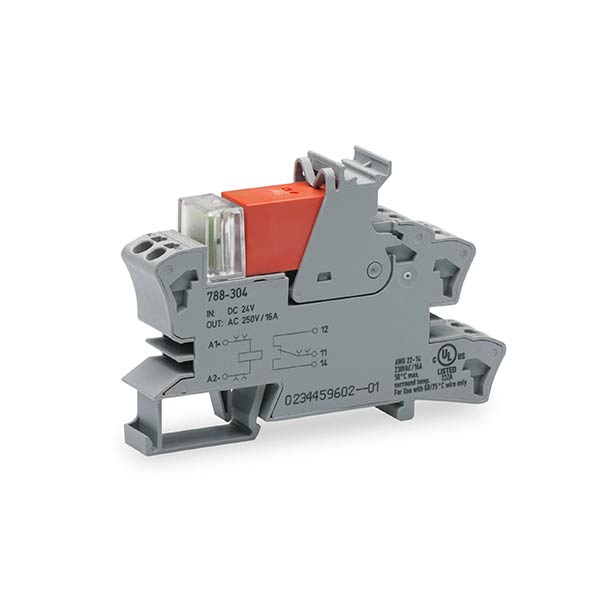

Releu si soclu 1 CO - DC 24 Vdc, 1 x 16A, gri
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/releu-si-soclu-1-CO-DC-24-Vdc-1-x-16A-gri-6350.jpg "Releu si soclu 1 CO - DC 24 Vdc, 1 x 16A, gri")
Modul releu; Tensiune nominală de intrare: 24 VCC; 1 contact de schimb; Limitarea curentului continuu: 16 A; Indicator de stare roșu; Lățimea modulului: 15 mm; 2,50 mm²; gri
BRAND: Wago
MOD DE LIVRARE: CURIER
DISPONIBILITATE: LA COMANDA
COD PRODUS: 788-304
SHARE
Alege Culoare
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/releu-si-soclu-1-CO-DC-230-Vac-1-x-16A-gri-2358.jpg "Releu si soclu 1 CO - DC 230 Vac, 1 x 16A, gri")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/releu-si-soclu-2-CO-DC-24-Vdc-2-x-8A-gri-7518.jpg "Releu si soclu 2 CO - DC 24 Vdc, 2 x 8A, gri")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/releu-si-soclu-2-CO-DC-230-Vac-2-x-8A-gri-9000.jpg "Releu si soclu 2 CO - DC 230 Vac, 2 x 8A, gri")
SPECIFICATII
| Nominal input voltage UN | DC 24 V |
| Input voltage range | ±10 % |
| Nominal input current at UN | 19 mA |
| Number of changeover/switchover contacts | 1 |
| Contact material (relay) | AgNi 90/10 |
| Limiting continuous current | 16 A |
| Max. make current (resistive) | (AC) 30 A / 4 s |
| Max. switching voltage | AC 250 V |
| Max. switching power (resistive) | AC 4000 VA; DC see load limit curve |
| Switching capacity | AC-15: 6 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Recommended minimum load | 12 V / 10 mA |
| Pull-in time (typ.) | 8 ms |
| Drop-out time (typ.) | 6 ms |
| Bounce time (typ) | 6 ms |
| Electrical life (N.O.; resistive load; 23 °C) | 30 x 103 switching operations |
| Mechanical life | 30 x 106 switching operations |
| Max. switching load with load/without load | 6 min-1 / 1200 min-1 |
