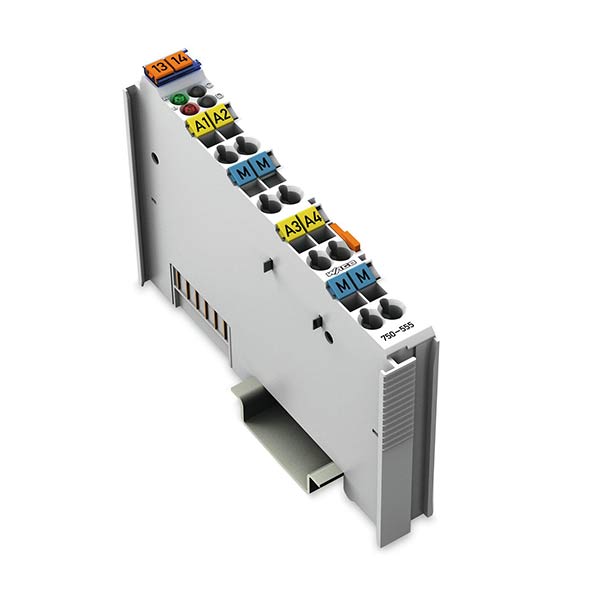

Modul iesiri analogice 4AO - 2-4-wire
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-analogice-4AO-2-4-wire-8394.jpg "Modul iesiri analogice 4AO - 2-4-wire")
Modul iesiri analogice 4AO - 2-4-wire, WAGO, 750-555
BRAND: Wago
MOD DE LIVRARE: CURIER
DISPONIBILITATE: ÎN STOC
COD PRODUS: 750-555
SHARE
Alege Culoare
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/PFC200-2-ETH-RS-Wago-controller-8636.jpg "PFC200 - 2 ETH RS Wago controller")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/controller-ethernet-G3-SD-Card-2-RJ45-2172.jpg "Controller ETHERNET - G3 SD Card 2 RJ45")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/PFC100-2-ETH-ECO-controller-Wago-2950.jpg "PFC100 - 2 ETH ECO controller Wago")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/PFC100-2ETH-RS-controller-wago-7829.jpg "PFC100 - 2ETH RS controller Wago")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-digitale-16DI-24-VDC-3ms-3574.jpg "Modul intrari digitale 16DI - 24 VDC 3ms")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-digitale-16DO-24-VDC-0-5A-5105.jpg "Modul iesiri digitale 16DO - 24 VDC 0.5A")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-digitale-8DI-24-VDC-3ms-8746.jpg "Modul intrari digitale 8DI - 24 VDC 3ms")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-digitale-8DO-24-VDC-0-5A-2575.jpg "Modul iesiri digitale 8DO - 24 VDC 0.5A")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-analogice-4AI-2-4-wire-SE-8619.jpg "Modul intrari analogice 4AI - 2-4-wire SE")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-analogice-8AI-0-4-20mA-SE-1673.jpg "Modul intrari analogice 8AI - 0/4-20mA SE")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-analogice-4AO-0-10-VDC-1345.jpg "Modul iesiri analogice 4AO - 0-10 VDC")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-capat-controller-wago-6754.jpg "Modul capat controller Wago")
123045 Lei
SPECIFICATII
| Number of analog outputs | 4 |
| Total number of channels (module) | 4 |
| Type of signal | Current |
| Type of signal current | DC 4 … 20 mA |
| Actuator connection | 4 x (2-conductor) |
| Resolution [bit] | 12 Bit |
| Bit width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
| Load impedance | either 0 ... 300 Ω or 300 ... 600 Ω (use same range of impedance for all loads!) |
| Conversion time (typ. ≤) | 10 ms |
| Recovery time (typ.) | 100 ms |
| System supply voltage | DC 5 V; via data contacts |
| Current consumption, system supply (5 V) | 60 mA |
| Field supply voltage | DC 24 V (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
| Isolation | 500 V system/supply |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
