Modul intrari digitale 16DI - 24 VDC 3ms
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-digitale-16DI-24-VDC-3ms-3574.jpg "Modul intrari digitale 16DI - 24 VDC 3ms")
Intrari digitale 16DI - 24 VDC 3ms - WAGO - 750-1405
BRAND: Wago
MOD DE LIVRARE: CURIER
DISPONIBILITATE: ÎN STOC
COD PRODUS: 750-1405
SHARE
Alege Culoare
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/PFC200-2-ETH-RS-Wago-controller-8636.jpg "PFC200 - 2 ETH RS Wago controller")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/controller-ethernet-G3-SD-Card-2-RJ45-2172.jpg "Controller ETHERNET - G3 SD Card 2 RJ45")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/PFC100-2-ETH-ECO-controller-Wago-2950.jpg "PFC100 - 2 ETH ECO controller Wago")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/PFC100-2ETH-RS-controller-wago-7829.jpg "PFC100 - 2ETH RS controller Wago")

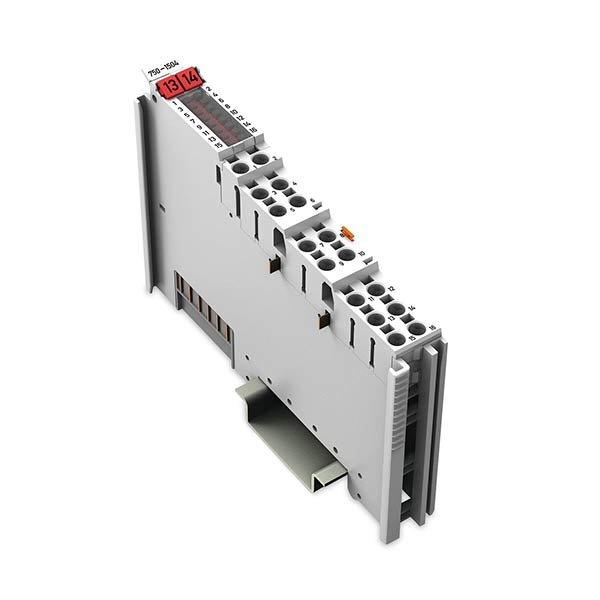

:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-digitale-16DO-24-VDC-0-5A-5105.jpg "Modul iesiri digitale 16DO - 24 VDC 0.5A")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-digitale-8DI-24-VDC-3ms-8746.jpg "Modul intrari digitale 8DI - 24 VDC 3ms")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-digitale-8DO-24-VDC-0-5A-2575.jpg "Modul iesiri digitale 8DO - 24 VDC 0.5A")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-analogice-4AI-2-4-wire-SE-8619.jpg "Modul intrari analogice 4AI - 2-4-wire SE")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-analogice-4AO-2-4-wire-8394.jpg "Modul iesiri analogice 4AO - 2-4-wire")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-intrari-analogice-8AI-0-4-20mA-SE-1673.jpg "Modul intrari analogice 8AI - 0/4-20mA SE")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-iesiri-analogice-4AO-0-10-VDC-1345.jpg "Modul iesiri analogice 4AO - 0-10 VDC")
:contrast(5):quality(80)/https://www.elematis.ro/uploads/products/modul-capat-controller-wago-6754.jpg "Modul capat controller Wago")
60182 Lei
SPECIFICATII
| Total number of channels (module) | 16 |
| Type of signal | Voltage |
| Type of signal voltage | DC 24 V |
| Sensor connection | 16 x (1-conductor) |
| Input characteristic | high-side switching |
| Input filter (digital) | 3 ms |
| Input current per channel for signal (0) typ. | 0,6 mA |
| Input current per channel for signal (1) min. | 2,1 mA |
| Input current per channel for signal (1) max. | 2,4 mA |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 15 … 30 VDC |
| Max input data width (internal) | 16 Bit |
| System supply voltage | DC 5 V; via data contacts |
| Current consumption, system supply (5 V) | 25 mA |
| Field supply voltage | DC 24 V (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact) |
| Isolation | 500 V system/supply |
| Indicators | LED (1-16) green: Status DI 1 … DI 16 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity of the power jumper contacts | 10 A |
